Restoring C64 tapes: from a worn cassette to a .tap that loads#

A Commodore 64 cassette from the 1980s has spent forty years losing its treble, stretching and shedding. Play it into a sound card and you get a recording of all that wear. This guide is about getting the programs back out of it: what a tape actually holds, how C64 READY. reads a recording, how it mends what the tape lost, and how you can tell what survived.

The same decoder sits behind both tools: the Datasette in the emulator, for one tape at a time, and c64rdy, the command line, for a shoebox of them. Everything described here happens in both.

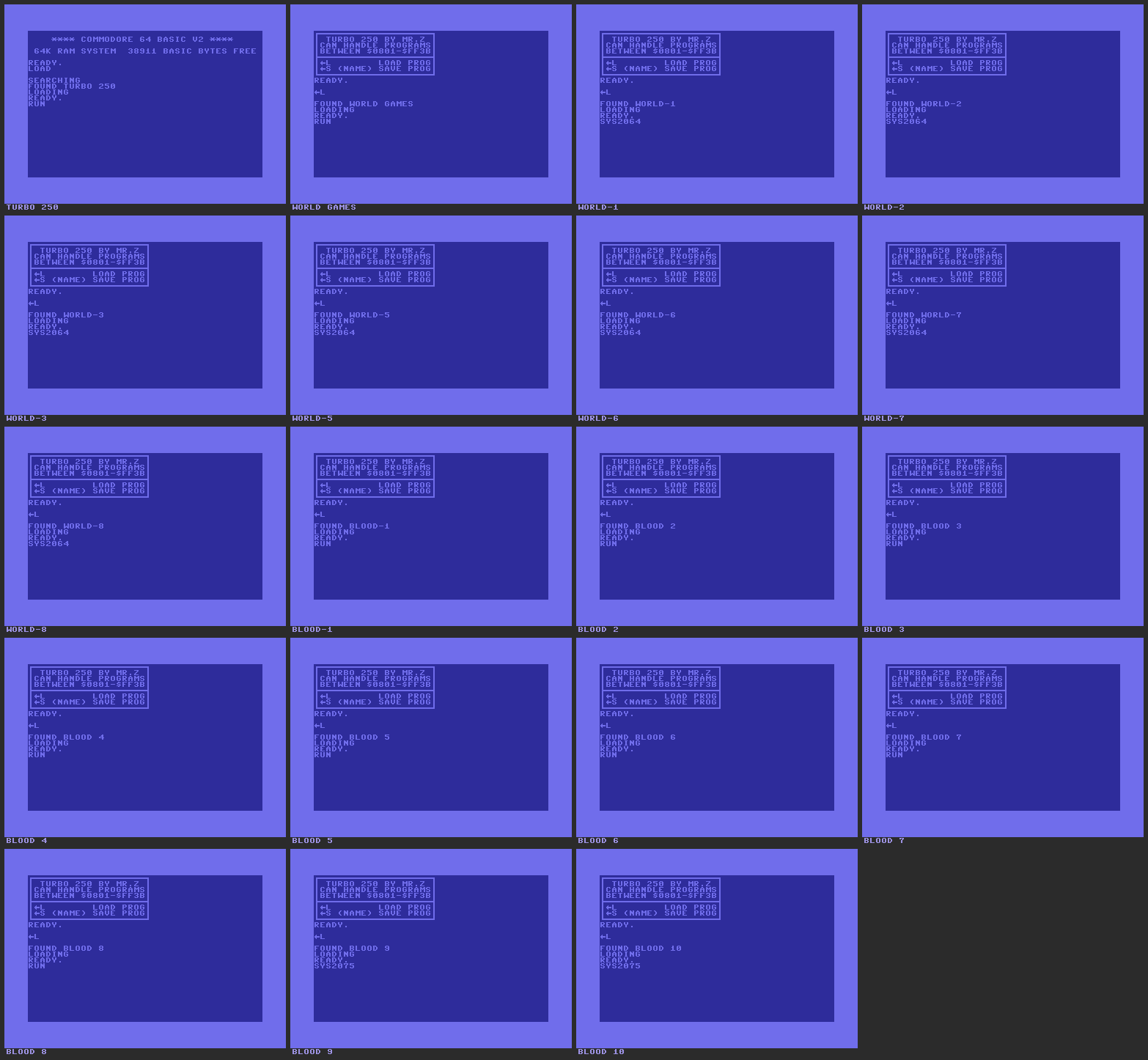

One cassette side, transferred from a worn original and restored: nineteen programs, every one booted and playing. The CLI made this picture with c64rdy run side-a.tap --all --collage --anim.

What is on a tape#

A C64 does not record sound on a cassette, and it does not record bytes either. It records timing. The machine's tape port flips a signal, and the Datasette writes each flip onto the tape. Reading it back, the machine measures how long passes between one flip and the next. That length of time is the data.

One full swing of the signal, up and back down, is a pulse, and its width is measured in the C64's own clock cycles (about a million a second). The standard format the C64's built-in KERNAL writes uses three widths:

A bit is a pair of pulses: short then medium is a 0, medium then short is a 1, and long then medium marks the start of a byte. A whole program is thousands of these pairs in a row.

Turbo loaders, which most commercial games use, do the same with two shorter widths (Turbo Tape 64 uses 216 and 328 cycles), which is why they load several times faster. The tape still carries a short KERNAL file at the front: that is the loader itself, which then reads the rest.

Seeing it for yourself#

The Datasette has a scope that draws the signal under the tape head as it plays. Load any tape, power on, press ▶ PLAY, and open it from the waveform button beside the card title:

The window shows about 20 ms of tape, and the readout under it counts the pulses and gives the shortest and longest in cycles. On a KERNAL tape it settles at 384–688, the three widths above. Wind on into a turbo file and the numbers drop to its two shorter widths.

The 🔊 button beside it plays the same signal out loud: not a sound effect, but the tape rebuilt from its pulses. A turbo loader screeches higher than the KERNAL's slow warble, because its pulses are shorter.

Both draw from the .tap in the deck, so what you see and hear is exactly what the C64 reads. On a restored tape, that is the clean result, not the worn recording.

What a .tap file is#

A .tap file is that list of pulse widths, one number per pulse, and nothing else. It has no directory and no file names of its own; those are inside the pulses, written the way the C64 wrote them. That is why it is the right container for a cassette: it keeps everything the tape did, including the parts no one has identified yet, and any loader on the tape can read it.

Restoration, then, means one thing: turning a recording back into an accurate list of pulse widths.

Making the recording#

What you capture decides what can be recovered, so a few things are worth knowing before you press record.

• Record in stereo if you can. The tape has one track, but a stereo head reads it twice, slightly differently. Two channels give the decoder two readings to compare, and that is where most mending comes from.
• Any common sample rate works. Nothing is resampled; widths are measured in the recording's own samples and converted to cycles. At 48 kHz an edge is placed to within about 20 cycles, while the widths a loader tells apart are 64 cycles or more apart, so 44.1 or 48 kHz is plenty. A higher rate places edges more finely.
• Leave the recording as it comes off the deck. Level and centre are measured every few milliseconds as the decoder goes, so there is no need to normalise. Filters and noise reduction reshape the very edges being timed.
• Keep the whole side. Silence between files is fine; it is how the decoder tells recordings apart.

.wav files of 8, 16, 24 or 32-bit PCM and 32 or 64-bit float are read, mono or stereo. A DC2N .dmp dump also works: it captures the pulses directly from a real Datasette, so it skips the reading stages and goes straight to mending.

How a recording becomes a tape#

Load a .wav into the Datasette, or give it to c64rdy wav2tap, and it goes through seven passes. The emulator's "Reading tape" dialog shows them by name.

Measuring the signal#

A half-hour recording does not hold one level. The tape gets louder and quieter, and its centre line drifts. So the decoder takes the level and centre locally, over windows of about 3 ms, smoothed across their neighbours. Each part of the tape is judged against its own surroundings, not against the loudest moment of the side.

Finding the pulses#

Every place the wave crosses its centre is a candidate edge. Hiss crosses the centre too, though, so a crossing only counts once the signal swings past a gate, a quarter of the local level either side of the centre (the shaded band in the pulse picture above). Noise inside the band is ignored; a real swing goes through it.

Each crossing is placed between the two samples that straddle it, finer than the sample rate, and crossings are then paired into pulses. Which pairing is right depends on how the recording deck was wired, so the decoder picks the one that gives the fewest distinct widths. A home tape can hold recordings from decks wired either way up, so each stretch between silences chooses for itself.

Each pulse is measured on its own, so a deck that ran a little fast or slow does not need correcting: its pulses are all a little short or long, and the loaders allow for that. The speed is measured and reported ("the deck that wrote this ran 3.1% fast"), but not changed.

Lining up the channels#

A cassette head is rarely perfectly square to the tape, so in a stereo recording one channel runs slightly behind the other. Simply averaging the two then cancels the signal wherever they are out of step: on one tape here a plain average listed 1 file of 8, where the lined-up average listed 12 of 14.

So the decoder measures that delay, lines the channels up, and reads the tape four ways: each channel alone, the plain average and the lined-up average.

Comparing the readings#

Each reading is decoded completely, and the one that proves the most files (complete, with checksums that add up) becomes the tape. Nothing is scored by how clean the signal looks; the files themselves decide.

Mending#

A worn tape loses things in two ways: dropouts, where the oxide is gone and the signal briefly vanishes, and spacing loss, where the treble fades so two short pulses blur into one long one. Mending is about proving what a damaged file said, from evidence the recording still holds. Nothing is invented: a file that cannot be proved is left as it was and marked.

A KERNAL file: the second copy#

The KERNAL writes every block twice, one copy straight after the other. On load, the C64 reads both, and a damaged repeat can still hang the machine or end in ?LOAD ERROR even when the first copy was fine.

• If one copy is whole, the damaged one is written again from it, at full length, so everything after it on the tape stays where it was.
• If both are damaged, but in different places, they are lined up and merged, each lost byte taken from the other copy. The block's own checksum decides whether the merge is the real file or is thrown away.

Lining the copies up is not as simple as counting bytes, because a dropout does not say how many it swallowed. Two copies of one 2052-byte block differed in 1658 positions when counted from the start, and in none once properly aligned.

A turbo file: reading again#

A turbo file is written only once, so there is no second copy. The second chance is the recording itself: the damaged stretch is read again, in every way available.

• The other channel, and both averages.
• Treble lifts from 1.5 to 5 times, which bring back the edges that spacing loss blurred. On one file, a lift of 3 took 674 unreadable pulses down to 296.

A single checksum that adds up is not proof: an 8-bit checksum lets one wrong reading in 256 through. So a block is proved only when two readings agree byte for byte. One reading alone is still put back, but reported as unconfirmed. Two that check out but disagree leave the file untouched.

When no whole reading passes, the clean stretches of several readings can be spliced together, each cut a safe margin short of its next fault. The checksum judges the result, and a splice is always reported as unconfirmed.

Turbo mending applies to Turbo Tape 64 files, and needs a recording to read again, so a .dmp dump gets the KERNAL repair only.

Written back clean#

Every proved block, mended or not, is rewritten at the exact widths the tape uses elsewhere. A lifted or averaged reading shifts widths slightly, and a 1980s loader has a fixed threshold where the decoder adapts. Rewriting means the tape's own loader reads the block as if it were new.

What it achieves, and what it cannot#

On the eight worn cassettes this was built against, 66 of 129 files loaded before mending, and 121 of 130 after. Each was checked by actually loading it, through the real KERNAL or the tape's own loader.

What is left is beyond any reading:

• Tape that carried nothing. One file has 923 ms missing, another 685 ms. There is no signal to recover.
• A pulse that landed on the wrong side. Sometimes every pulse is a legal width and the block is complete, yet the checksum is out by a bit or two: one pulse drifted into the range of the other symbol. There is nothing to cut around.

There is no correction for wow and flutter, and none for speed. The pulse measurement above makes them unnecessary for almost every tape.

In the emulator#

1. Load the recording. Press 📼 LOAD on the Datasette card (or ▶ LOAD ANY, or drop the file on the screen) and pick the .wav or .dmp.
2. Watch it read. The "Reading tape" dialog names each pass and shows its progress. A 30-minute side is a few hundred megabytes of audio read several times over, so it takes a while; the emulator keeps running behind it.
3. Read the verdict. The Status card reports what came out: how long the tape is, how many files, and whether any needed mending.
4. See what is on it. 🔍 in the tape's info row lists every file, with its format, size and start time.

A file struck through could not be read whole; hover it to see why, and the note under the list counts them and says what was mended. Click a row to wind the tape to that file's lead-in, then type LOAD and press ▶ PLAY.

5. Keep it. The tape goes into your Library as a .tap; the recording itself is not stored. ⤓ .TAP downloads it, and ⤓ .WAV renders it back to clean audio you can play into a real C64.

The browser reads every recording as a PAL tape. For a tape written on an NTSC machine, use the CLI's --ntsc.

The Media guide covers every button on the deck.

With the CLI#

c64rdy is for when you have more than one tape, or a recording too big to drag into a browser. The command line guide shows how to install it; it needs Node and nothing else.

Turn recordings into tapes#

c64rdy wav2tap ~/recordings/*.wav --out-dir tapes/

Each recording becomes a .tap, and each ends with its listing and a summary:

6 of 7 files readable. 1 mended from a second reading.

If a block was put back on the word of a single reading, a further line names it: Only one reading vouches for: ….

See what survived#

$ c64rdy dir "Tape 2 - Side B.tap"
Tape 2 - Side B.tap
16:03  ·  KERNAL + Turbo Tape 64  ·  18 files, 16 readable
The deck that wrote this ran 3.1% fast

   #  WIND TO  STARTS  NAME              FORMAT  LOAD         SIZE  STATUS
   1     0:02    0:09  TURBO TAPE 64     KERNAL  $0801-$1000    2K  ok
   2     0:57    0:59  OLYMPIA           Turbo   $0801-$1000    2K  ok
…

The header gives the whole side: how long it plays, which loader formats it carries, how far off speed the recording deck ran, and how much of the tape holds signal no known loader reads. WIND TO is where a real deck must be wound back to for the loader to find the file; STARTS is where its data begins.

dir takes a .wav directly too (decoding it on the way), --damaged shows only the broken rows, and --pulses adds pulse positions for digging into a particular stretch.

Prove that it loads#

c64rdy loadtest tapes/side-a.tap

A clean listing says the bytes are right. loadtest goes further: it winds to each file, loads it through the real KERNAL or the tape's own turbo loader, and checks the memory it names actually filled. The listing gains a LOADS column. It is slow and thorough; --file NAME tests just one.

Look at the pulses#

c64rdy loader tape.tap

When part of a tape belongs to a loader nothing recognises, loader shows a histogram of the pulse widths in that stretch, which names the two symbols the unknown loader writes, and then the loader itself, taken out of the tape and disassembled.

  0:22-5:53, 765753 pulses:
    CYCLES  PULSES
       296  434162
       584  331510

Mend, join and convert#

A shoebox of cassettes, start to finish#

1. Record each side in stereo, as a .wav, and name the files so you can tell the sides apart.
2. Decode them all at once:

   c64rdy wav2tap ~/recordings/*.wav --out-dir tapes/


3. Find what came out damaged:

   c64rdy dir tapes/*.tap --damaged


4. Prove the rest loads:

   c64rdy loadtest tapes/side-a.tap


5. For a side that still fails, try again from the recording: --channel to force the other reading, or --pre-emphasis for a stronger treble lift. If the listing shows silence where a file should be, the tape itself has lost it, and a second transfer on another deck is the only way to get it back.
6. See them run:

   c64rdy run tapes/side-a.tap --all --collage --anim


Reading the results#

Garbled is the hopeful one: the signal is there, and a different reading may recover it. A drop means the tape itself carried nothing, and only another transfer of the same cassette can help.

Reference#

Formats read: the KERNAL's own, Turbo Tape 64, GRL-Supertape, Novaload, US Gold / Datasoft, Gremlin Type 2, Ocean / Imagine, Freeload, Wildload and PROCASS. A tape written by another loader still restores as pulses and still loads; it just lists as signal no known format reads.

For the full method, with the measurements behind each choice, see the Datasette architecture page.
