Retro Vibes 3D viewer (src/vibes/retrovibes.js): Architecture Overview#

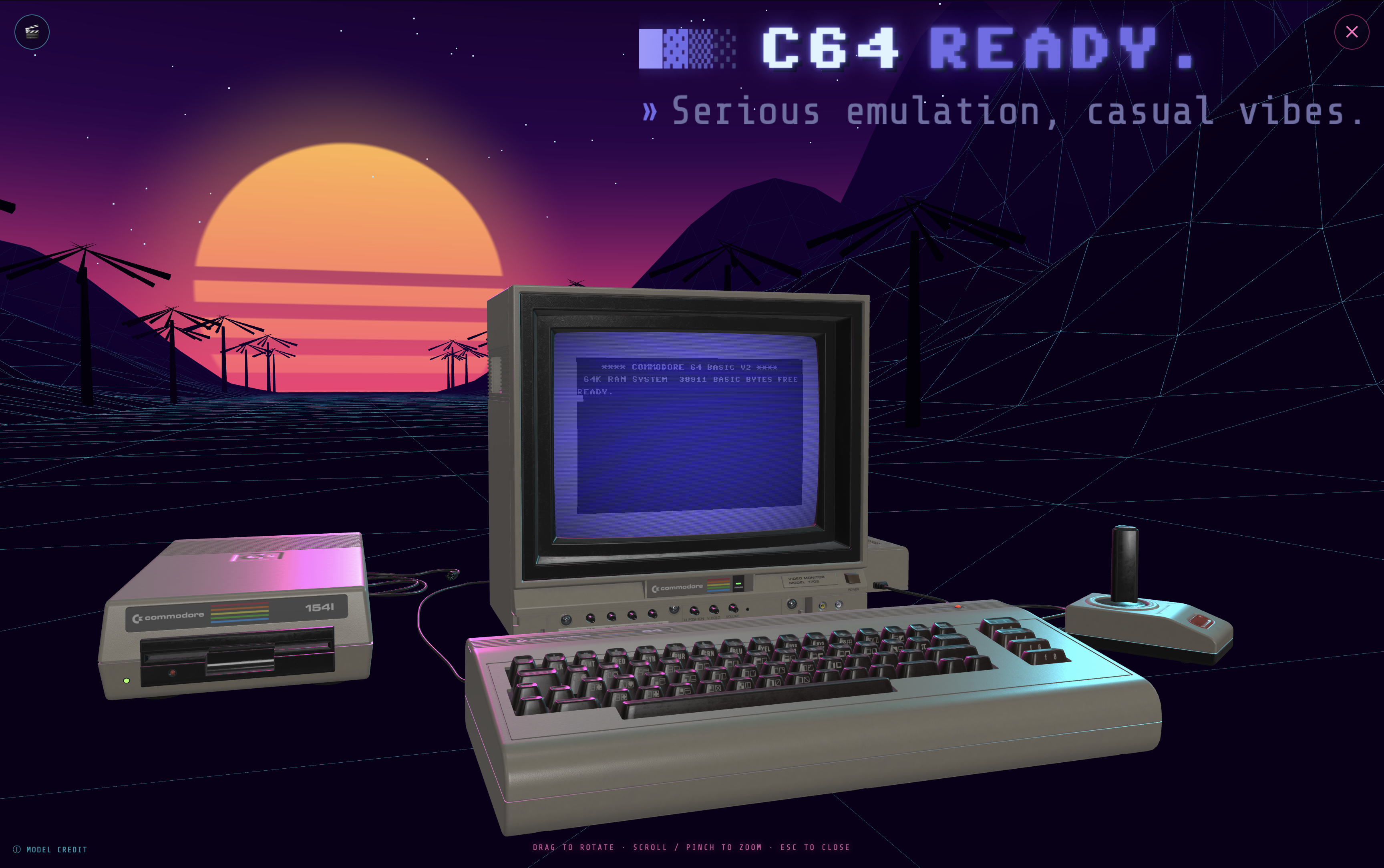

Retro Vibes is a browser-window-filling three.js scene that shows the Commodore 64 as a 3D model (the breadbin, a 1541 disk drive and a 1702 monitor) lit like an 80s synthwave demo, with the live emulator picture playing on the modelled monitor's CRT. Drag to rotate, scroll / two-finger pinch to zoom, double-click to power the machine on, Esc or the ✕ to close.

Just want to use it? See Getting started §7 and the Features tour. This document is the implementation deep-dive.

The whole viewer is the ModelViewer class, constructed once around the #model-viewer-overlay element. It is self-contained: src/main.js only ever calls open() / close() and wires a handful of callbacks (§9); the WebGL context, the glTF model, the scenes, the post-processing and WebXR all live inside ModelViewer. It shares one trait with the powered-off attract animation in src/vibes/pausedemo.js: both lazy-import three.js on first use so the library never bloats the main bundle (§10).

The glTF model is "Commodore 64 || Computer (Full Pack)" by dark_igorek, CC BY 4.0, credited in the overlay's ⓘ model-credit popup.

1. Opening & closing#

The 🌇 VIBES button (#btn-vibes, in Controls) opens the viewer. main.js lazy-imports the module, builds the ModelViewer once, then calls open():

• _enterBusy() pauses + mutes the machine (§9) for the heavy transition.
• _ensureRenderer() builds the WebGLRenderer + its canvas, the shared IBL cubemap and the canvas-level input/XR/context-loss listeners once for the app lifetime, reused across every open/close.
• _initGL() builds the per-open scene/camera/controls/composer (§2; once per open cycle; teardown resets the flag).
• The overlay is unhidden and overlay.requestFullscreen() is requested inside the click gesture (true fullscreen past the browser chrome); it falls back to the CSS full-viewport overlay if the browser refuses.
• _loadModel() loads the GLB (§8), then the render loop starts via renderer.setAnimationLoop(this._loop), a WebXR-compatible loop that also drives the per-eye frames while presenting.

Closing happens three ways, all routed to the idempotent close(): the ✕ button (#btn-model-viewer-close), Esc, or exiting native fullscreen. Esc is an escape-stack layer pushed by open(), so the overlay outranks any dialog beneath it; there is no keydown listener of its own, and other keys stay live so you can type and watch the result on the modelled TV. A fullscreenchange handler closes the viewer when fullscreen is lost, unless it was left deliberately to enter VR. close() persists the camera, hides the overlay, exits fullscreen, stops the loop (setAnimationLoop(null)), then _teardownGL() disposes the per-open scene while keeping the renderer and its GL context alive. The next open() rebuilds only the scene and reloads the model onto the same context; the module-level procedural texture caches and the IBL cubemap survive (tagged _shared), resident across opens.

Why the context is kept: WebKit does not reclaim a discarded WebGL context's memory (forceContextLoss() is not honoured there), so a context per open lets a few enter/exit cycles climb into the gigabytes and trip Safari's "significant memory" tab reload.

What teardown frees instead, explicitly, via _disposeObject(): geometry, materials and their textures, each post-processing pass's render targets (three's EffectComposer.dispose() frees only its own ping-pong targets, not the passes), reflector/shadow-map render targets, and instanced buffers. (One residual: a THREE.Water reflection target in the IK+ scene, which Water exposes no handle to free.) A lost context is recovered by a webglcontextrestored handler that rebuilds the open scene.

2. The three.js scene#

_initGL() builds everything once:

• Renderer: WebGLRenderer({ antialias: true, alpha: true }), pixel ratio capped at min(devicePixelRatio, 2), cleared with alpha 0 so the CSS backdrop shows through, SRGBColorSpace output, ACESFilmicToneMapping at exposure 1.05, soft shadow maps (PCFShadowMap). renderer.xr.enabled = true (§7).
• Environment (IBL): RoomEnvironment is baked once into a PMREM cubemap so the glossy / clearcoat surfaces catch real reflections; its strength is set per scene via scene.environmentIntensity (envInt).
• Camera: PerspectiveCamera(45, 1, 0.01, 2000), parented in a _rig group. The rig stays at identity on desktop (camera local space == world space), so it is transparent to OrbitControls and framing; VR moves the whole viewer by moving the rig (§7).
• OrbitControls: left-drag rotate, wheel / pinch zoom, right-drag pan, damping 0.08 for inertia. zoomToCursor = false so the dolly runs along the camera→target axis (§3). A slow idle auto-spin (autoRotate, speed 0.35) is restored from its saved state and yields to the user on drag (§6).
• Post-processing (EffectComposer, wrapped in try/catch → plain render on failure): RenderPass → UnrealBloomPass → OutputPass (tone-map + sRGB) → ShaderPass(GradeShader) → SMAAPass. GradeShader is a gentle cinematic grade (edge chromatic aberration, vignette and film grain) running on the final sRGB image; its uTime (grain) is advanced each frame in _loop. Each scene's grade sets aberration, vignette, grain and optional split-tone colours. _applyScene resets all grade uniforms on each switch, including explicit zero values. Spotlight has no chromatic aberration and minimal grain; IK+ Sunset and Bedroom use restrained, separate settings. Bloom parameters are also overridden per scene. When post-processing is actually applied, see §5.

3. Framing, zoom-to-monitor & the persisted camera#

_frameModel() measures the model's Box3 + bounding sphere and pulls the camera back to dist = (r / sin(fov/2)) × 0.56; the sub-1 factor crops slightly into the sphere so the flat C64 silhouette fills the frame. It sets the dolly limits (minDistance = r×0.2, maxDistance = dist×4) and near/far to suit.

The default view orbits and dollies around the live screen: the orbit target is the centre of the monitor_screen mesh, and because zoomToCursor is off, zooming moves the camera straight toward the monitor; the CRT is the star. If a saved view exists it is restored instead (dolly limits are widened so the saved distance is not clamped away). Four small localStorage keys persist viewer state:

4. The live screen: emulator framebuffer → CRT texture#

This is the defining integration: the running C64 picture appears on the modelled 1702's glass. It is set up by _wireScreen() and refreshed every frame by _updateScreen():

• _wireScreen(root) finds the mesh carrying the monitor_screen material and recomputes clean planar UVs from the glass geometry (local X→u, Y→v) so the framebuffer projects onto it upright and undistorted. It creates a THREE.DataTexture of 384 × 272 (the VIC-II canvas, see VIC-II) in RGBAFormat / UnsignedByteType, SRGBColorSpace, NearestFilter for crisp chunky pixels, no mipmaps, flipY = true. It is wrapped in a MeshBasicMaterial({ map: tex, toneMapped: false }), unlit and tone-map-exempt, so the screen reads as a self-emitting CRT at the true VIC palette, untouched by the scene's lighting or ACES grading. A CRT effect (horizontal scanlines, corner vignette, gain) is injected via onBeforeCompile, after the material's own sRGB decode. The mesh's original material and atlas UVs are kept so the powered-off monitor can be restored exactly as shipped.
• _setScreenLive(live) swaps the glass between the live-feed material (+ planar UVs) and the model's original material (+ atlas UVs), in lockstep.
• _updateScreen() (called first thing in _loop) asks the screen provider for the current frame. null (machine powered off) → _setScreenLive(false), the untouched glass. Otherwise it goes live and, only when the framebuffer array reference changes (the machine is re-created on power / reset), re-points tex.image at the new buffer; each display frame it flags tex.needsUpdate = true so the bytes re-upload. At 10 Hz it also samples a fixed 16 × 12 pixel grid, converts the sRGB bytes to linear light and records average colour + luminance. Spotlight and Bedroom use that allocation-free result through vibes-crt-light.js to tint and brighten a smoothed, outward-facing CRT area light. Smoothing uses elapsed time; black, missing or powered-off pictures fade to zero light. Area dimensions track the glass; intensity is luminance and does not need model-scale compensation. Bedroom uses a gentler strength, independently of its decorative television's existing flicker. Neither emitter adds a mesh, shadow map or post-processing pass.

main.js supplies the provider via setScreenProvider(), reusing one { data: vic.frameBuffer, width: 384, height: 272 } object while the machine runs, or returning null otherwise.

5. Scenes (moods)#

Each entry in the module-level SCENES array keeps the same model + camera and only changes the lighting, surroundings and backdrop. A scene's build(group, ctx) adds its lights and props to a group that is torn down wholesale on switch, and an optional animate(group, t) runs each frame. envInt scales the IBL, and a scene may replace the shared neutral RoomEnvironment PMREM with its own via envMap(renderer); IK+ bakes one from its sunset sky. bg / fog / tone / exposure / bloom tune the look. The 🎬 button (#btn-model-viewer-scene) calls nextScene() → _applyScene(), which disposes the old group, builds the new one, applies its env-intensity / tone-mapping / background / fog / bloom, and persists the index.

Scenes flagged basic render with a plain renderer.render and bypass the composer; the bloom + grade + SMAA pipeline runs for the non-basic scenes (Spotlight, IK+ Sunset, 80s Bedroom), while Synthwave and Starry Plain further use raw tone mapping and bake their glow into their own shaders. Backdrop gradients are cached equirect CanvasTextures; the procedural props (room textures, star sprites, sunset sky/sun, water normal map, checker floor) are built once and cached at module level.

Bedroom and Spotlight set staticShadows. vibes-shadow-cache.js watches the casters, their ancestors, shadow lights and light targets. Transforms, visibility, vertex/index buffer versions (including animated keycaps), instanced matrices and shadow camera parameters invalidate the maps. Camera orbit, light intensity and non-casting dust do not. Scene switches rebuild dependencies and request fresh maps; reparenting tracked objects rebuilds the dependencies too. Code adding casters to an existing scene must call the cache's rebuild().

IK+ refreshes its offscreen water reflection at 30 Hz, reducing the extra scene render and associated shader-program cache work. The water's wave time still advances every display frame. Projection changes and XR eye renders bypass the rate limit. Starry keeps one hidden meteor, reusing its geometry, material and direction vector; its maximum lifetime is shorter than the minimum spawn interval.

6. Interactions on the model#

• Double-click to boot. A dblclick anywhere on the canvas fires onDoubleClick; main.js wires it to power the C64 on when it is off (reusing the power button's full boot path), so the modelled TV lights up.
• Idle auto-spin. A plain click (press + release under a 5 px threshold, so a rotate-drag never triggers it) toggles the OrbitControls idle spin; each restart reverses direction. The choice is saved to localStorage.
• Studio mode (Cmd/Ctrl+Shift+X). Strips the viewer to the scene and the C64 READY. logo (no hint, no credit, no buttons, no mouse pointer) for screenshots and video. Everything hidden is CSS-only (a .studio class on the overlay), so the render loop, the camera and the live screen texture carry on untouched. The shortcut is the only way in and out (from a closed viewer it opens straight into Studio mode); Esc keeps its usual job of closing the viewer. The preference persists (isStudio() / setStudio() / _applyStudio()), so the viewer reopens as bare or as furnished as it was left.
• Keycap press. The RETURN keycap on the computer_keyboard mesh gets a small press animation (attachKeycapPresses, advanced each frame via this._keycap.update()).
• Power LEDs. The GLB bakes each LED lens into a shared mesh. _wireLeds / _recolorLeds / _wireMonitorPowerLed isolate a lens's triangles, by base-texture hue within a gated region or, for the monitor lamp, by a world-space box plus a face-normal test, then reindex them into their own geometry group with a dedicated emissive material. _loop ramps each material's emissiveIntensity from the emulator state:

7. WebXR VR mode#

Immersive-VR renders the scene in stereo with head tracking. The 🥽 ENTER VR button (#btn-model-viewer-vr) starts hidden and _initVrButton() reveals it only when navigator.xr.isSessionSupported('immersive-vr') resolves true, i.e. a real headset or the WebXR emulator browser extension, so it never appears on desktop without VR or on any phone / tablet. It stays disabled until the model is loaded and framed, because the rig is seeded from the current camera.

_toggleVr() first exits DOM element-fullscreen (in fullscreen the browser will not route pointer events to elements outside the fullscreen element, which would leave the injected page controls visible but dead), suppressing the auto-close, then requests immersive-vr with the optional local-floor feature. On sessionstart, _onXrStart() pauses and mutes for the first per-eye shader compile, disables the orbit controls, hides the 2D overlay and snapshots the desktop camera pose. It places the rig at that world pose so VR continues from the exact 3D view (1:1 scale) with the headset pose added on top. A plain hemisphere fill light is added because VR skips the composer. On sessionend, _onXrEnd() synchronously restores the desktop camera (position, orientation, fov, target), so no headset pose is ever persisted, then re-enables controls and re-grabs fullscreen. In VR, _loop always uses a plain renderer.render (the EffectComposer is not XR-compatible), so the neon post-processing is skipped and the headset view is flatter than the 2D view.

8. Screen-adaptive model resolution#

The model ships in two GLB builds. _loadModel() calls resolveModelUrl() when loading the model, so reopening the viewer uses the current preference:

• commodore_64_4k.glb: a heavy 4K-texture build (~95 MB) for large screens.
• commodore_64.glb: a lighter build (~18 MB) for phones and tablets.

resolveModelUrl() defaults to the lighter commodore_64.glb on every device; the 4K build's large single-open memory peak makes the light model the safe default. The user can change this in Options ▸ Display ▸ 3D MODEL (#btn-vibes-model), which cycles SMALL → AUTO → LARGE and stores the choice under c64emu.vibesModel, read fresh on each open. SMALL (default) forces the light build and LARGE the 4K build. AUTO defers to autoWantsLargeModel(): 4K only when the longest screen dimension is ≥ 1024 CSS px and the device is not touch (navigator.maxTouchPoints > 0 / ontouchstart), so phones and tablets get the light asset. The path is resolved against Vite's BASE_URL so it stays correct under a non-root deploy. GLTFLoader reports load progress into the overlay's LOADING MODEL… label.

9. Integration with main.js#

main.js builds the viewer lazily (_ensureModelViewer() → import('./vibes/retrovibes.js')) and injects everything it needs through setters, reading the machine fresh each call because it is re-created on power / reset:

The fullscreen API only displays and routes pointer input to descendants of its fullscreen element. On open, the viewer therefore moves the existing touch-control element from the 2D monitor into its overlay before requesting fullscreen; on every close path it restores the element to its original DOM position. The element keeps the same listeners and joystick state throughout.

The busy hooks matter for audio: open(), close(), scene swaps and VR entry all stall the main thread (GL init, model load, scene build, first shader compile, exit-fullscreen reflow), which would starve the SID AudioWorklet's ring buffer and make the sound jerk. ModelViewer holds the machine paused across each transition and resumes only once the scene has actually rendered a couple of frames and the resizes have settled (_loop's busy-exit logic); close() resumes off a short timer since the loop is already stopped.

10. Performance notes#

• Lazy chunk. three.js and its addons (~700 kB) are imported only on the first open, so they split into their own bundle chunk instead of weighing down startup.
• Runs only while open. The render loop is a setAnimationLoop started in open() and cleared in close(), so the viewer costs nothing when closed; _updateScreen also bails unless running.
• Scene teardown on close. _teardownGL() frees every per-open resource and reference but keeps the renderer/context and the _shared module-level caches alive for the next open; the full disposal inventory and the WebKit rationale are §1's.
• Cheaper scenes skip the composer. basic scenes render plain (§5), and the device-adaptive model (§8) keeps phones on the light asset.

11. Key invariants & gotchas (quick reference)#

• One WebGL context for the app lifetime: only the per-open scene is ever rebuilt. Never create a context per open: WebKit does not give the memory back (§1).
• The fullscreen element owns pointer input: the touch-control element is reparented into the overlay before fullscreen is requested and restored on every close path, keeping its listeners and joystick state (§9).
• The CRT material is unlit and tone-map-exempt (toneMapped: false), so the live screen shows the true VIC palette untouched by scene lighting or grading (§4).
• Every heavy transition runs inside the busy hooks (open, close, scene swap, VR entry); an unpaused machine would starve the SID worklet's ring and the sound would jerk (§9).
• VR skips the composer (plain render + a hemisphere fill light), and the desktop camera pose is restored synchronously on session end; a headset pose is never persisted (§7).
• Esc is an escape-stack layer, not a keydown listener: the overlay outranks dialogs beneath it while every other key stays live to the C64 (§1), and it closes the viewer in Studio mode too (§6).
